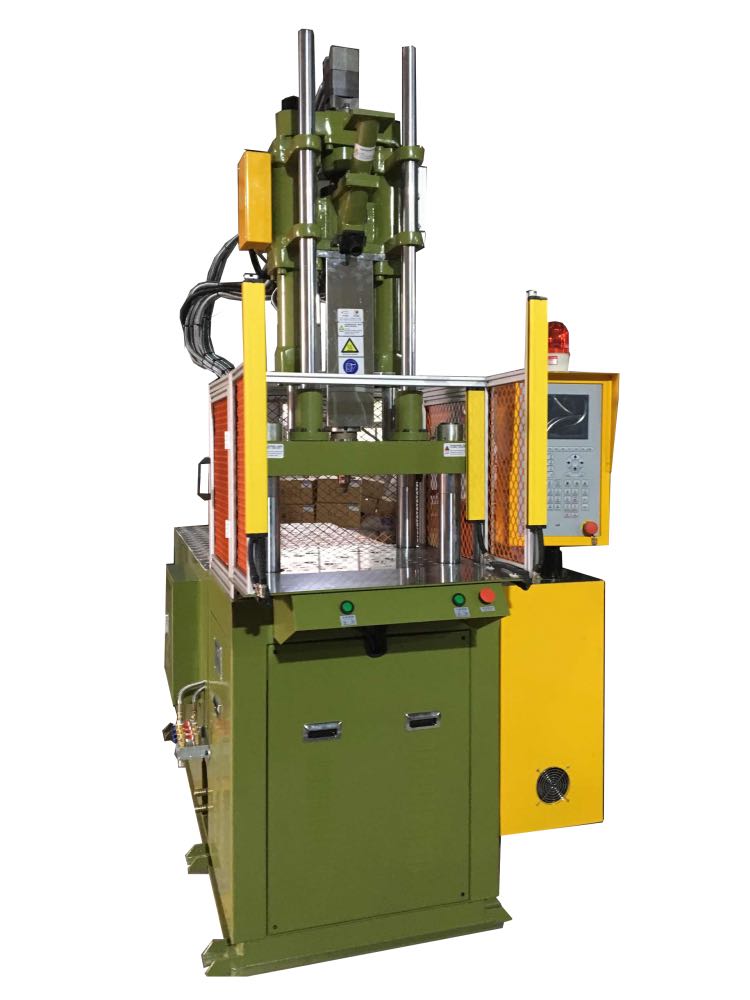

立式塑料射出機
所屬分類：標準立式注塑機
- 點擊次數：
- 發布日期：2020/03/12
- 在線詢價
詳細介紹
立式塑料射出機的養護要重于維修，堅持良好的養護是削減及防止機器發生故障的最有用的途征，養護方法包含：
1.堅持清洗可防止由雜物引起的磨損、阻塞、生銹并及時發現漏油情況;
2.機械及時添加潤滑可防止機械零件磨損。更能使操作順暢、降低作業噪聲;
3.操控作業結束后，若長期不使用也要定期查看機械狀況，防止電器零件因松脫、接觸不良或老化而引起失靈;
4.定期檢查有呀電力系統，若零件有漏油現象及時制止，從而防止油的損失及產品的污染;
5.機器的正確調?？商岣呱a(chǎn)效率，保持機器的精確性，削減因調整不當而形成的電力或機械的壽命損耗。
| 機械型號 Machine Type | Unit | PT-350/D/DM | PT-450/D/DM | PT-550/D/DM | PT-750/D/DM | PT-850/D/DM | |||||||||||||
| 射出系統 | 螺桿直徑 Screw diameter4045 | mm | 25 | 30 | 32 | 25 | 28 | 35 | 30 | 35 | 40 | 30 | 35 | 40 | 35 | 40 | 45 | 50 | |
| 射出壓力 Injection pressure | kg/cm2 | 1747 | 1213 | 1050 | 2509 | 1742 | 1280 | 2170 | 1594 | 1220 | 2170 | 1594 | 1220 | 2171 | 1663 | 1314 | 1064 | ||
| 理論射出容量 Theoretical Shot Volume | cm3 | 49 | 71 | 77 | 59 | 85 | 115 | 99 | 135 | 176 | 99 | 135 | 176 | 135 | 176 | 223 | 275 | ||
| 射出量 (PS) Injection weight(P.S.) | g | 45 | 64 | 70 | 54 | 77 | 105 | 90 | 123 | 160 | 90 | 123 | 160 | 123 | 160 | 203 | 250 | ||
| oz | 1.6 | 2.3 | 2.4 | 1.9 | 2.7 | 3.7 | 3.2 | 4.3 | 5.7 | 3.2 | 4.3 | 5.7 | 4.3 | 5.7 | 7.2 | 8.9 | |||
| 射出率 Injection rate | cm3/sec | 35 | 50 | 52 | 36 | 52 | 71 | 51 | 69 | 90 | 51 | 69 | 90 | 82 | 107 | 135 | 167 | ||
| 螺桿行程 Screw Stroke | mm | 100 | 120 | 140 | 140 | 140 | |||||||||||||
| 螺桿轉速 Screw speed | rpm | 0-205 | 0-190 | 0-175 | 0-175 | 0-200 | |||||||||||||
| 射嘴接觸力 Nozzle Contact force | kn | 20 | 24 | 26 | 26 | 29 | |||||||||||||
| 射嘴行程 Nozzle Retraction Stroke | mm | 140 | 180 | 200 | 200 | 220 | |||||||||||||
| 溫度段數 Number of temperature control | / | 3 | 3 | 4 | 4 | 4 | |||||||||||||
| 料斗容量 Material Hopper Capacity | l | 20 | 20 | 30 | 30 | 30 | |||||||||||||
| 鎖模系統 | 鎖模力 Clamping Force | kn | 350 | 450 | 550 | 750 | 850 | ||||||||||||
| 開模力 Opening Force | kn | 65 | 83 | 135 | 140 | 105 | |||||||||||||
| 模板尺寸 Mold plate dimension | mm | 520*370 | 580*430 | 650*490 | 650*490 | 740*500 | |||||||||||||
| 容模尺寸 Distance between tie dars | mm | 352*370 | 390*430 | 490*490 | 490*490 | 560*500 | |||||||||||||
| 最小模厚 Min mold thickness | mm | 190/130 | 210/150 | 280/220 | 310/250 | 250/250 | |||||||||||||
| 開模行程 Opening stroke | mm | 180 | 200 | 200 | 200 | 250 | |||||||||||||
| 最大開模距離 Max. daylight opening | mm | 370/310 | 410/350 | 480/420 | 510/450 | 560/500 | |||||||||||||
| 頂出力 Ejector force | kn | 13 | 13 | 13/21 | 13/21 | 33/35 | |||||||||||||
| 頂出行程 Ejector stroke | mm | 45/95 | 45/95 | 45/145 | 45/145 | 75/145 | |||||||||||||
| 滑模系統 | 滑模行程 Slide stroke | mm | 350 | 420 | 500 | 500 | 500 | ||||||||||||
| 最大模具重量 Max Mold Weight | kg | 90 | 120 | 150 | 180 | 200 | |||||||||||||
| 滑模定位精度 Station Clearance | mm | ±0.02 | ±0.02 | ±0.02 | ±0.02 | ±0.02 | |||||||||||||
| 最大液壓壓力 Max Hydraulic Pressure | kg/cm2 | 140 | 140 | 140 | 140 | 140 | |||||||||||||
| 油壓電力系統 | 泵浦吐出量 Pump Output | liters/min | 26 | 39 | 47 | 65 | 76 | ||||||||||||
| 作動油量 Oil Reservoir Capacity | liters | 100 | 130 | 150 | 180 | 180 | |||||||||||||
| 冷卻水用量 Cooling Water Consumption | liters/hr | 400/600 | 600-800 | 800-1000 | 1000-1200 | 1200-1500 | |||||||||||||
| 油壓馬達電力 Pump Motor Power | kw | 5.5 | 7.5 | 11 | 14.7 | 14.7 | |||||||||||||
| 電熱容量 Barrel Heating Power | kw | 2.7 | 3.5 | 4.5 | 4.5 | 5.6 | |||||||||||||
| 總用電量 Total Wattage | kw | 8.2 | 11 | 15.5 | 19.2 | 20.3 | |||||||||||||
| 機械重量 Machine weight(about) | tons | 1.3/1.4/1.5 | 1.5/1.6/1.7 | 2.2/2.4/2.6 | 2.3/2.5/2.7 | 4.5/4.8/5 | |||||||||||||
| 其它 | 機械外型尺寸 Machine dimension(L*W*H) | m | 1.6*1.06*2.18 | 2.35*1.1*2.2 | 2.4*1.3*2.65 | 2.4*1.3*2.65 | 2.55*1.5*3.2 | ||||||||||||
| 付船重量 Shipping Weight | tons | 1.4*1.5*1.6 | 1.7/1.9/2.1 | 2.6/2.9/3.2 | 2.7/3/3.3 | 5.1/5.6/5.8 | |||||||||||||
| 付船尺碼 ShippingMeasurements (L*W*H) | m | 1.8*1.45*2.18 | 2.5*1.5*2.2 | 2.4*1.7*1.5 | 2.5*1.7*1.5 | 4*2.0*1.7 | |||||||||||||
